Andrew Dupuis1, Dan Ma2, and Mark A Griswold1,2
1Biomedical Engineering, Case Western Reserve University, Cleveland, OH, United States, 2Department of Radiology, School of Medicine, Case Western Reserve University, Cleveland, OH, United States
Synopsis
We
implemented an augmented reality (AR) scanner interface in order to
streamline the scanner console while allowing users to work natively in
three dimensions. The Microsoft Hololens was leveraged to allow users to
visualize and control the scanner wirelessly. A gesture based interface
was created, with emphasis placed on simplification of the scan process
to help untrained non-imaging personnel to interact with the scanner.
The resulting system is simple to use and allows the operator to
maintain direct sight of the patient throughout the scan.
Purpose
MRI
acquisitions are inherently three-dimensional, but we control scanners
and review images in two dimensions. For as long as the field has
existed, slice planes, fields of view, and other acquisition parameters
have been configured via menus and flat projections of slice
intersections. This disconnect from three-dimensionality continues after
reconstruction: slices are displayed out of context both from each
other and from the patient, on a screen that often blocks the operator’s
view of the subject.
Scanner control software has bloated over
the years to enable highly-granular control that emphasizes flexibility
over intuitive use, creating barriers to use of the system by
non-technicians (especially physicians without MR expertise) and
introducing points for human error [1]. With the help of more autonomous
protocols such as magnetic resonance fingerprinting (MRF), we aim to
develop a three dimensional augmented reality (AR) interface that is
both intuitive to use and capable of replacing the control and display
functions of the scanner console.Methods
We
developed the control and visualization system in the Unity Engine, and
used a time-slice approach (Unity coroutines)for communication and user
inputs in place of multithreading to expand platform compatibility.
Communication with the 3T clinical scanner (Skyra, Siemens Healthineers)
was via the Access-I SDK, which enables granular remote control of the
scanner over HTTP.
A gesture system was implemented to capture
the user’s hand motions for interaction with the scanner. Although the
gestures were developed for Windows Mixed Reality devices, the
underlying interface is compatible with all Unity Engine build targets,
including WebGL and mobile devices.
After the user dons the AR
headset an origin is established in world space via an AR marker
(Vuforia) or a shared spatial anchor. This origin is then mapped to the
scanner’s coordinate system and virtual buttons are instantiated around
the user for gesture and gaze based control. Bidirectional communication
is established with the scanner via HTTP through a registration
handshake that opens WebSockets for data transfer and establishes
permissions for the client to control the scanner directly.
To
begin a scan, the user first selects a body region.Optionally, a 3-axis
localizer acquisition can be run and rendered at the origin. This
establishes the patient context for subsequent scans. The user may then
select a specific acquisition to run (2D, 3D, etc). Sequence-specific
controls are then displayed to allow the user to dynamically add slice
groups unique numbers of slices, orientations, and center positions from
within the UI. Each slice group is represented by blank placeholder
geometry within the coordinate system.
Once data has been
collected and reconstructed, the images and associated transform data
are sent by the Access-I plugin to the visualization device where each
image replaces the associated slice placeholder in the visualization.
The user can select whether only the most recent acquisitions are shown
or new acquisitions are added to the existing set of visualized data, as
well as adjust scan parameters for the subsequent acquisition.Results
The
system described above was implemented for the Hololens device in Unity
2019.1f1. Bidirectional communication between the scanner and a
Microsoft Hololens was established reliably over a wireless LAN. Latency
between the completion of acquisition and visualization in the
visualization program averaged 0.27s for a 256^2 matrix acquisition,
though that includes the time needed for online reconstruction.

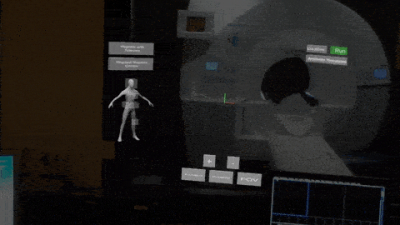

Figure
1 shows the software registering to control a simulated scan and

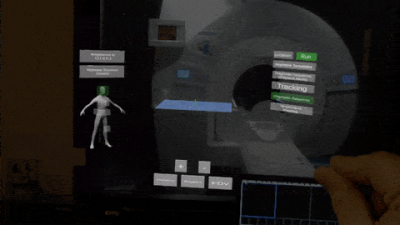

loading the initial slice coordinates from the saved sequence. Figure 2
demonstrates the user interface for modifying a preset slice group

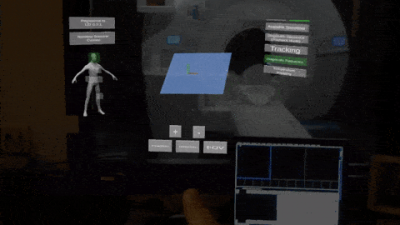

position, then adding an additional slice group to the protocol. Figure 3
demonstrates the ability to add and modify multiple slice groups within

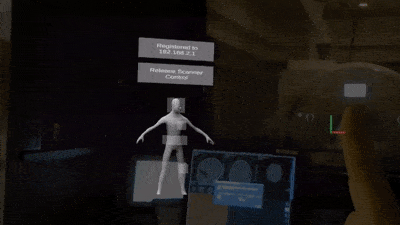

a sequence template. Figure 4 demonstrates the interface in use at the
scanner for an initial online test of the control system, and shows
rendering of the imaging planes based on the metadata provided by the
scanner.Discussion
This
system streamlines the acquisition and visualization process, while
retaining the three dimensional nature of an MRI experiment. This allows
clinicians and technologists to work in 3D throughout the acquisition
and reading process. Native 3D control of scan targets and acquisition
parameters is possible, and reconstructed data can be immediately
co-registered and rendered without input from the user.
Bidirectional
communication exposes most scanner functions for control from the AR
interface, without the user needing to disengage from the data or lose
sight of the patient. While the interface is significantly pared down
from the desktop interface, this encourages interaction with the image
data rather than the console controls. The streamlined acquisition
process can be run with minimal understanding of the scanner’s
interface, allowing physicians to take a more active role during
interventional imaging. It should be noted that AR is not the ideal
interface for in-depth scan modifications - such details should be
pre-configured in a traditional interface before switching to AR during
the acquisition.
In the future, as the system operates in a world
coordinate system it is possible for multiple clients to connect to the
scanner in local or telepresence mixed reality.This would allow for
novel collaboration about a patient (and modification of scan
parameters) while the patient is still in the scanner.Acknowledgements
Siemens Healthcare, R01EB018108, NSF 1563805, R01DK098503, and R01HL094557.References
[1]
Automatic scan prescription for brain MRI. Magn Reson Med. 2001
Mar;45(3):486-94. https://www.ncbi.nlm.nih.gov/pubmed/11241708
[2]
Ma, D. Gulani, V., Seiberlich, N., Liu, K., Sunshine, J., Duerk, J. and
Griswold, M.A. (2013). Magnetic Resonance Fingerprinting. Nature. 2013
Mar 14. 495(7440): 187-192.
