Andrew Dupuis1, Rasim Boyacioglu1, Yong Chen1, Michael Hansen2, Kelvin Chow3, Chaitra Badve4, Dan Ma1, and Mark Griswold1
1Biomedical Engineering, Case Western Reserve University, Cleveland, OH, United States, 2Microsoft Research, Redmond, WA, United States, 3Siemens Medical Solutions USA, Inc., Chicago, IL, United States, 4Radiology, University Hospitals, Cleveland, OH, United States
Synopsis
Keywords: MR Fingerprinting/Synthetic MR, Quantitative Imaging, Gadgetron, Brian Tumor, MNI, FSL, Docker, Automated, Registration
In
this study, to overcome some of the clinical integration issues of MRF,
we present a fully automated online reconstruction and post-processing
pipeline for 3D-MRF where the quantitative maps and custom reports are
returned to the scanner in real time. The whole pipeline is hosted in a
Kubernetes cluster which includes Gadgetron, FSL and other custom tools
in discrete Docker images. To illustrate the capability of the pipeline,
3D-MRF raw datasets of healthy and brain tumor patient datasets are
reconstructed in a cloud-based Gadgetron, registered to MNI space using
FSL and analyzed to compare with population based regional maps.
Purpose
Although
3D Magnetic Resonance Fingerprinting (3D-MRF) allows for rapid
acquisition of quantitative parameter maps, the process of preparing
reconstructed images for radiologists to interpret is usually far
slower, with multiple offline manual steps. As a result, fingerprinting
maps are rarely available to radiologists via PACS - let alone while a
subject is still in the scanner. Contributing to the issue, offline
reconstructions often lack crucial header information needed for
intrasession and intramodality image comparisons. These limits are
particularly frustrating for MRF, which should natively support
immediate intra- and intersubject comparisons that would be valuable
both at the scanner and in retrospective studies - especially if maps
registered to common atlases were also available.
To address
these limits, we implement an online fully-automated pipeline capable of
reconstructing 3D-MRF data and returning T1, T2, M0, and B1 maps in
both subject and MNI-152 space while remaining fully DICOM-compatible.
The immediate availability of quantitative maps in MNI-152 space is then
leveraged to generate statistical reports comparing major brain regions
against previously-collected population data via the Harvard-Oxford
subcortical atlas while the subject is still in the bore.Methods
In
order to make a modular, scalable system, Docker images supporting
ISMRMR-RD pipe-based communication were created and hosted within a

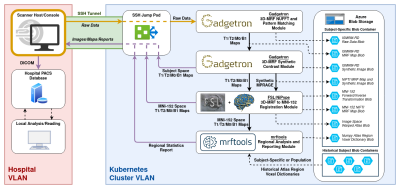

remote Kubernetes cluster consisting of CUDA-capable GPU nodes. Cluster
architecture and data flow details are available in Figure 1. All raw
data and intermediate module outputs are uploaded to a subject-specific
cloud blob container for future analysis and to ensure reproducibility.
Acquisition
raw data is first sent to the Kubernetes cluster via the Framework for
Image Reconstruction
Environment (FIRE) prototype routed through an SSH jump node. Data is
passed to the first module, a Gadgetron pipeline performing
GPU-accelerated 3D-MRF reconstruction. The resulting T1, T2, M0, and B1
maps are then piped to the next module.
The second module is a
Gadgetron pipeline generating synthetic MPRAGE contrasts via a
previously-trained Tensorflow regression model. The pipeline returns
synthetic T1w contrasts that closely match the MNI-152 T1w reference
image. Both the original quantitative maps and synthetic MPRAGE contrast
are then piped to the next module.
The third module is a python
container running FSL via the nipype interface. First, incoming data is
converted to NIFTI . Using the synthetic MPRAGE contrast, MRF maps are
nonlinearly registered to MNI-152 using FLIRT and FNIRT. The resulting
MNI-space maps and associated forward/inverse transformations are then
piped to the next module.
The final module is a python container
performing intra- and inter-subject regional analysis in MNI-152 space.
Historical subject-specific or population data is retrieved from blob
storage, and regional characteristics are compared against the current
dataset to generate a summary report. The MRF quantitative maps in both
subject-space and MNI-space as well as the regional statistics report
are then piped back to the scanner console where they can be viewed,
exported to DICOMs, or sent to a PACS database.
Existing raw
datasets from 3 healthy volunteers and 3 brain tumor patients were
retroreconstructed via FIRE to test the proposed system. All datasets
were originally acquired with a prototype FISP 3D-MRF sequence on a 3T
scanner (MAGNETOM Vida, Siemens Healthcare, Erlangen, Germany) with
varying field of view and spatial resolutions. Postprocessing times for
each module were recorded to measure the delay in image availability at
the scanner. For the regional statistics reports, we chose to generate
subject-vs-population regional comparisons as a proof of concept, with
the population regions defined via aggregation of 60 MRF datasets from
10 healthy volunteers.Results

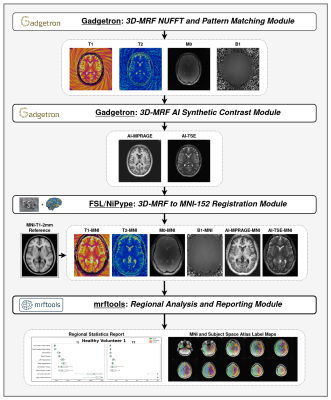

Figure
2 demonstrates the quality of the MRF quantitative maps and synthetic
MPRAGE images in both subject and MNI-152 space, as well as the quality

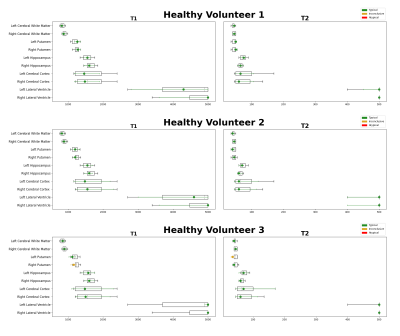

alignment against the Harvard-Oxford subcortical atlas. Figure 3 are
examples of the automated statistical report generated for the three

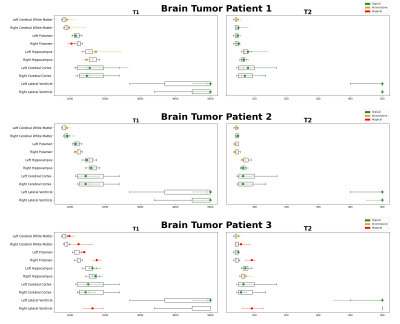

healthy subjects. Figure 4 replicates Figure 3 for the three brain tumor
patients, demonstrating the regional analysis’ sensitivity to atypical

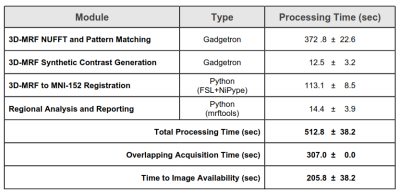

tissue properties across regions. Figure 5 summarizes the processing
times of the various and the resulting delay in image availability at
the scanner consoleDiscussion
A
fully-automated online analysis pipeline is presented for 3D-MRF,
capable of returning quantitative T1, T2, M0, and B1 maps in both
subject-space and MNI-152 space as well as automatic intra- or inter-
subject statistical reporting using MNI-space atlas regions.
Images
and reports are returned to the scanner in real-time, and both raw and
registered quantitative maps are fully compliant with common DICOM and
NIFTI tools like FSL and 3DSlicer. Images and reports can also be saved
to PACS directly, hopefully simplifying clinical adoption for
radiologists and other clinicians.
Automated generation and
semantic storage of MNI-space quantitative maps for each reconstructed
dataset should substantially simplify future population-based research
methods. For example, MNI-space images allow for immediate comparison
against a subject’s past scans or even against other subjects can be
performed without any additional registration, ROI creation, or other
manual intervention.
Additionally, while still requiring
substantial validation, the fully-automated generation of regional
reports represents an initial attempt at simplified anomaly detection
while still at the scanner console. We hope these reports can eventually
serve as an “early warning” about potential anomalies so that
technicians can acquire additional imaging immediately, avoiding a
repeat visit.Acknowledgements
This work was supported by Siemens Healthineers and Microsoft CorporationReferences
Chen Y, et al. Rapid 3D MR Fingerprinting Reconstruction using a GPU-Based Framework. ISMRM 2020.
Hansen
MS, Sørensen TS. Gadgetron: An Open Source Framework for Medical Image
Reconstruction. Magn Reson Med. 2013 Jun;69(6):1768-76.
Xue
H, Inati S, Sørensen TS, Kellman P, Hansen MS. Distributed MRI
Reconstruction Using Gadgetron-Based Cloud Computing. Magn Reson Med.
2015 Mar;73(3):1015–1025.
Xue
H, Inati S, Sørensen TS, Kellman P, Hansen MS. Distributed MRI
reconstruction using Gadgetron-based cloud computing. Magn Reson Med.
2015 Mar;73(3):1015-25. doi: 10.1002/mrm.25213. Epub 2014 Mar 31. PMID:
24687458; PMCID: PMC6328377.
Kubernetes (K8s): Production-Grade
Container Scheduling and Management. Kubernetes Github Repository, 2021
Nov; https://github.com/kubernetes/kubernetes
Gadgetron-Azure:
Sample code for deploying Gadgetron image reconstruction in Azure.
Azure-Gadgetron Github Repository, 2021 Nov; https://github.com/microsoft/gadgetron-azure
Chow K, Kellman P, Xue H. Prototyping Image Reconstruction and Analysis with FIRE. SCMR 2021.
